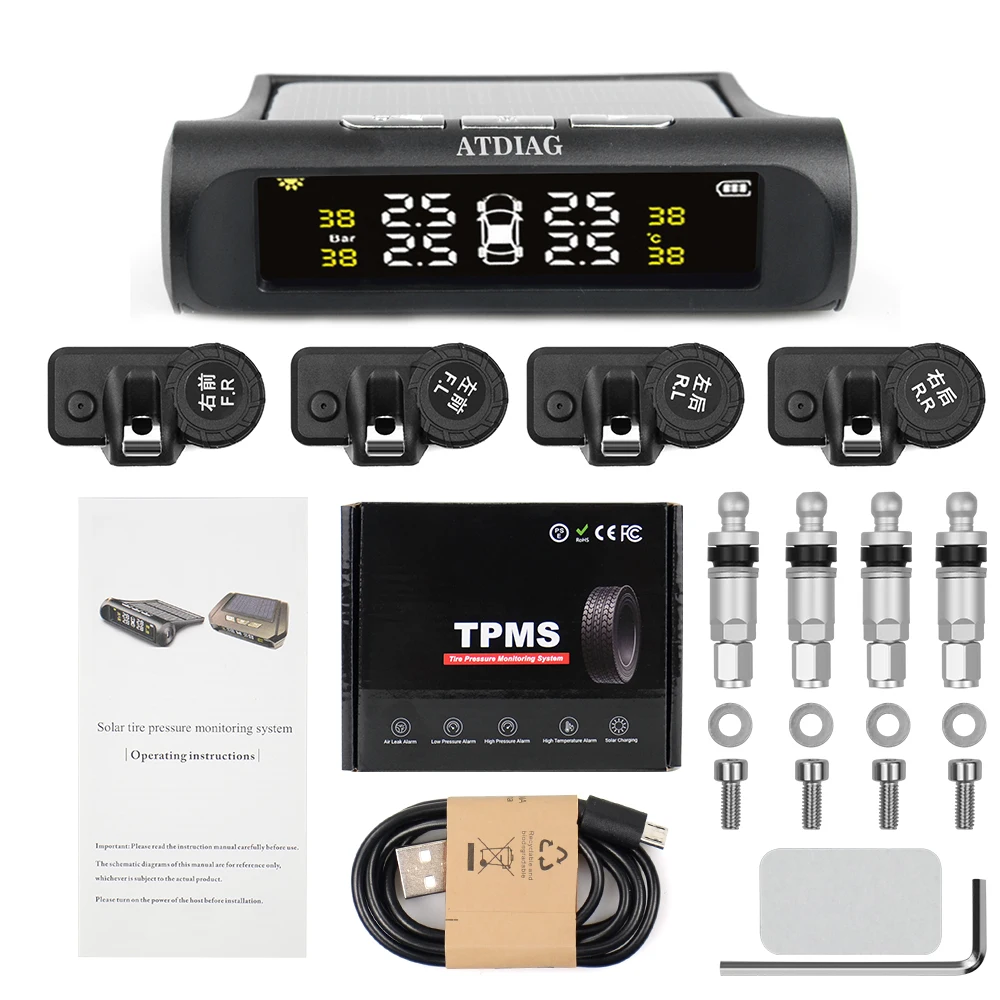

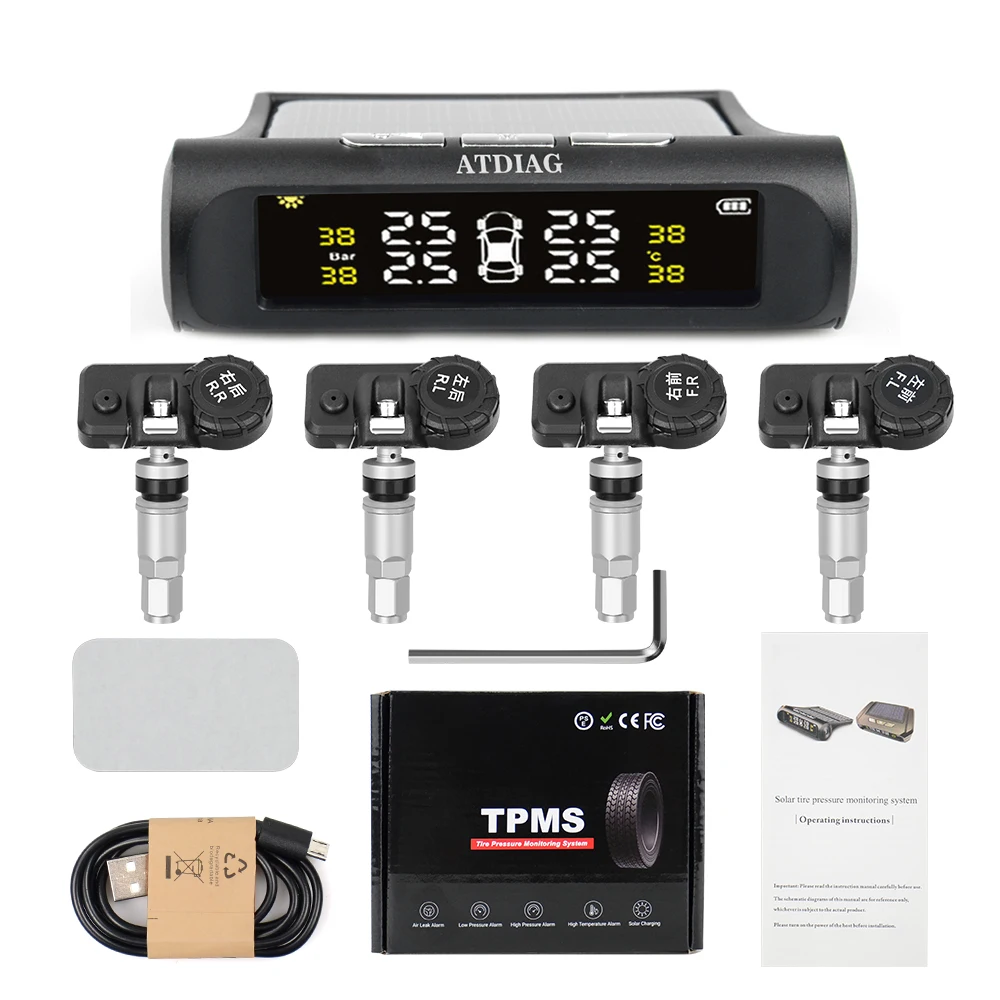

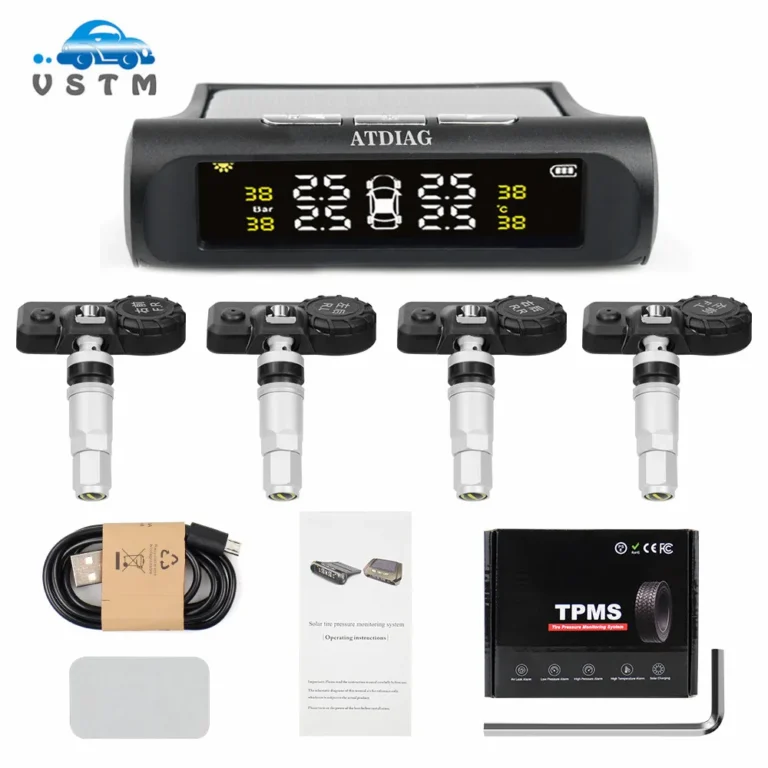

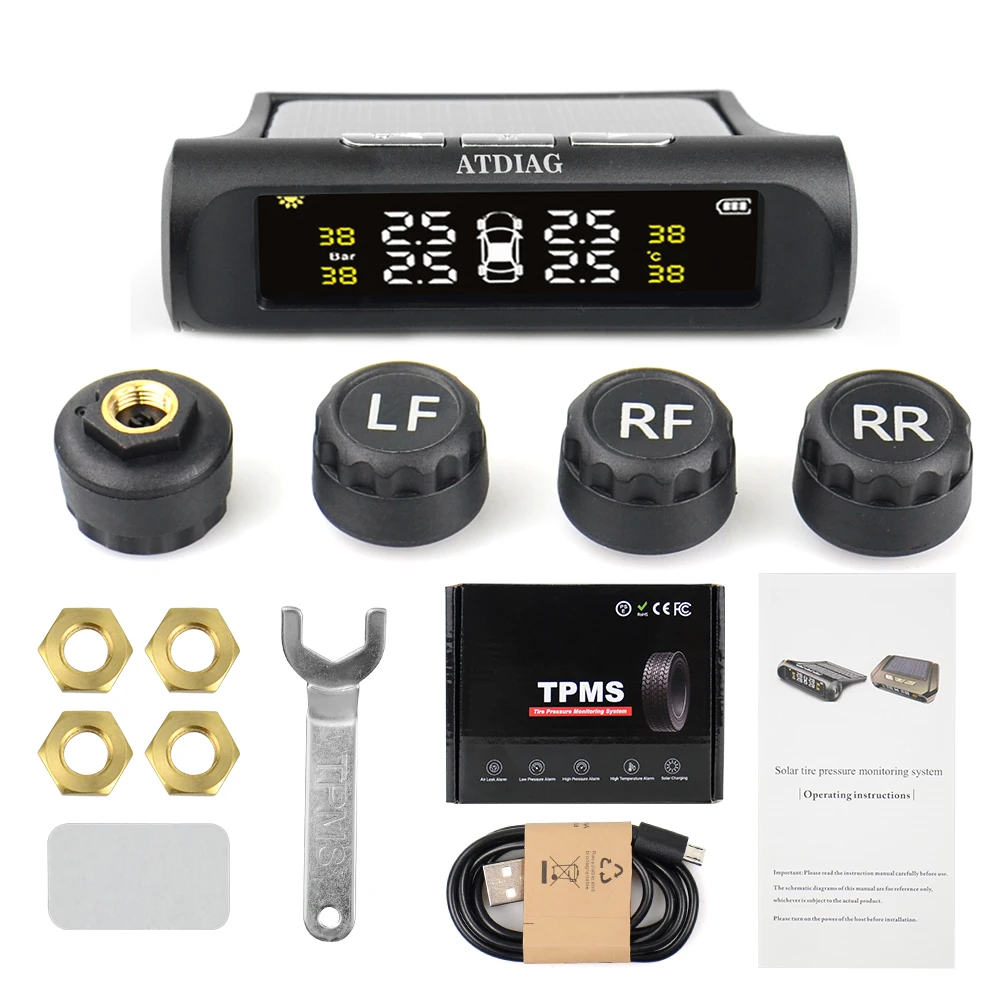

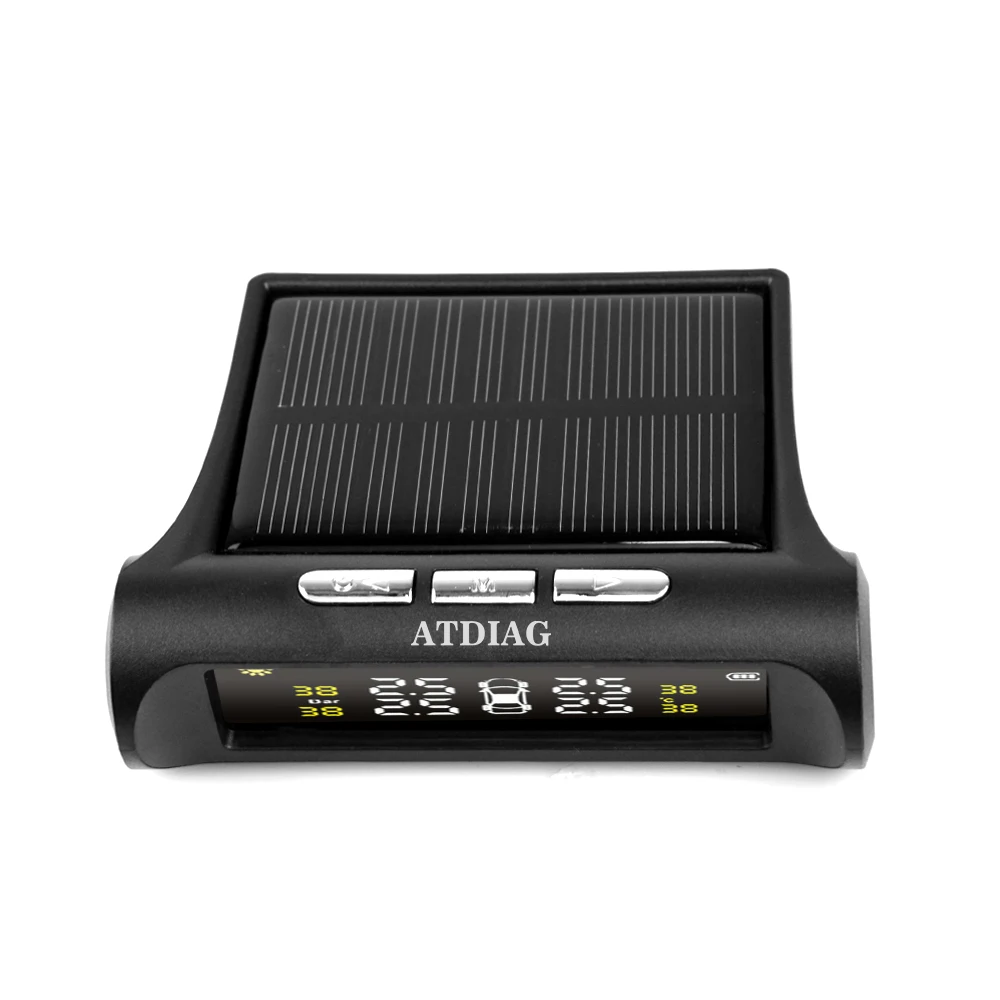

TPMS Tire Pressure Monitoring System Solar Charging

Notice: Please push left button over 3 minitus to turn on monitor, if it does not work, please try again after charging.

Specification:

Solar power charging

LCD displaying

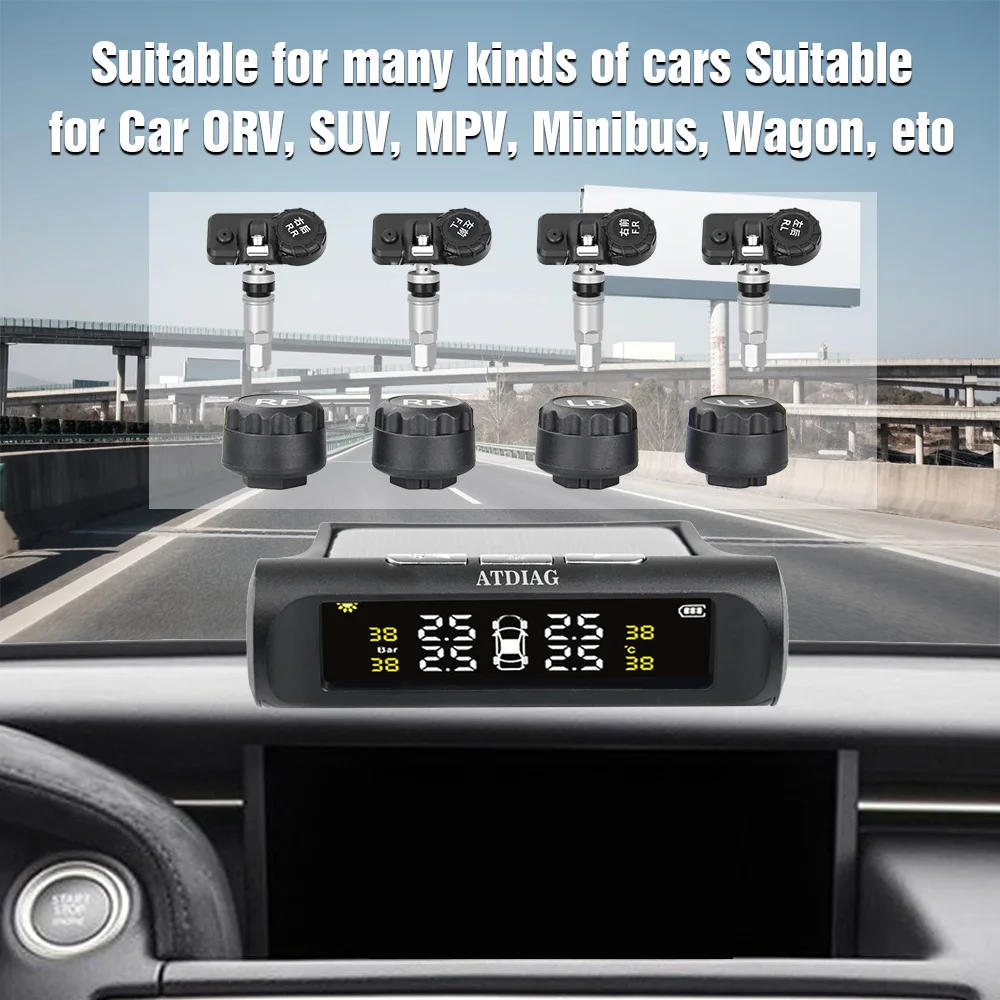

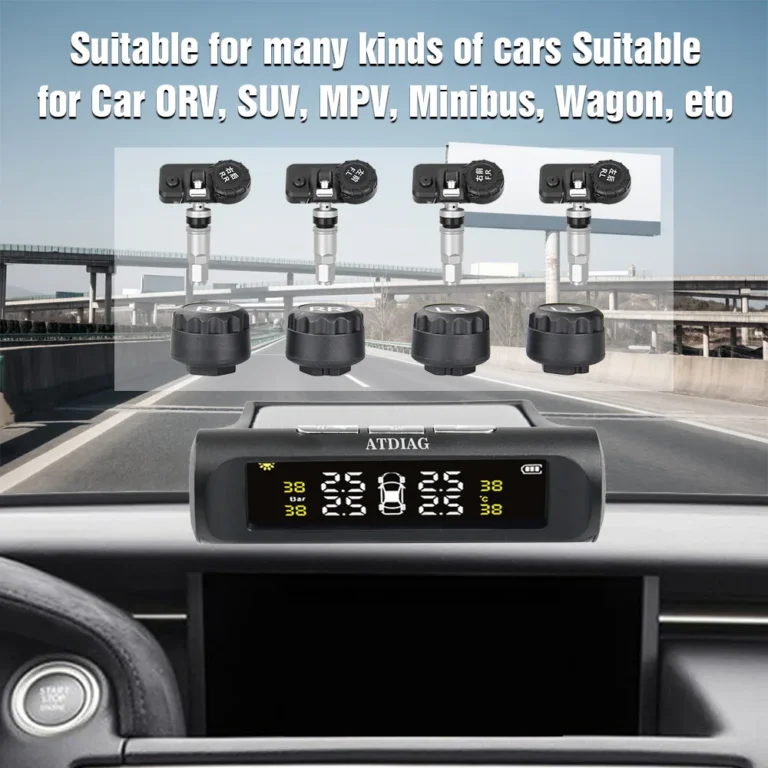

Adhere to windscreen for installation

Operating frequency: 433.92Mhz ± 50KHz

Operating voltage: 3.7-5 V

Working temperature: -20 ℃ -75 ℃

Adhere to windscreen for installation

Operating frequency: 433.92Mhz ± 50KHz

Operating voltage: 3.7-5 V

Working temperature: -20 ℃ -75

Parameter

1.Monitoring system body

Operating voltage: 3.7-5V

Storage temperature:-30°C-90°C

working temperature:-30°C-85°C

RF Emission frequency:433.92MH±50KHz

RF Signal sensitivity:-90dbm

Display mode:LCD Color

Bright screen current:≤6mA

Black screen current:≤4mA

Size:85*95MM

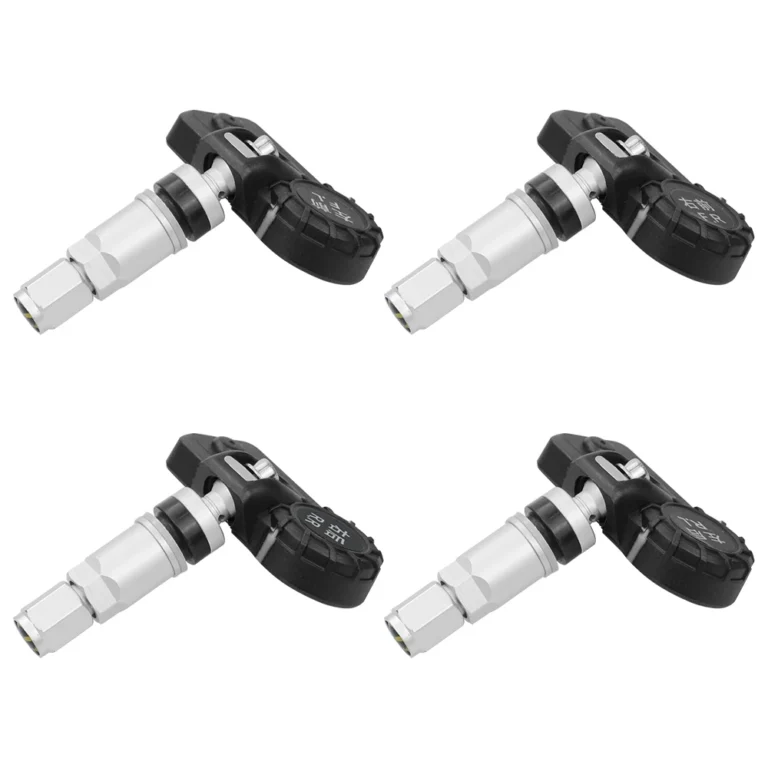

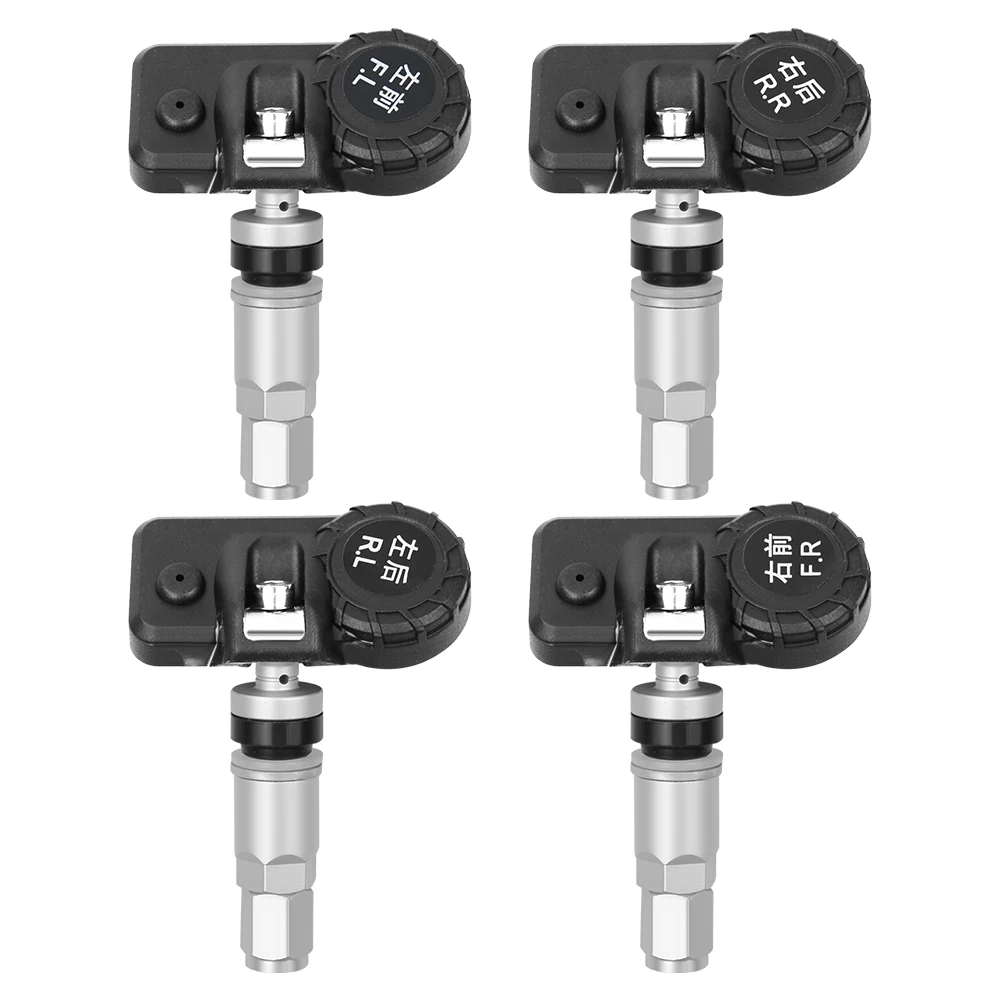

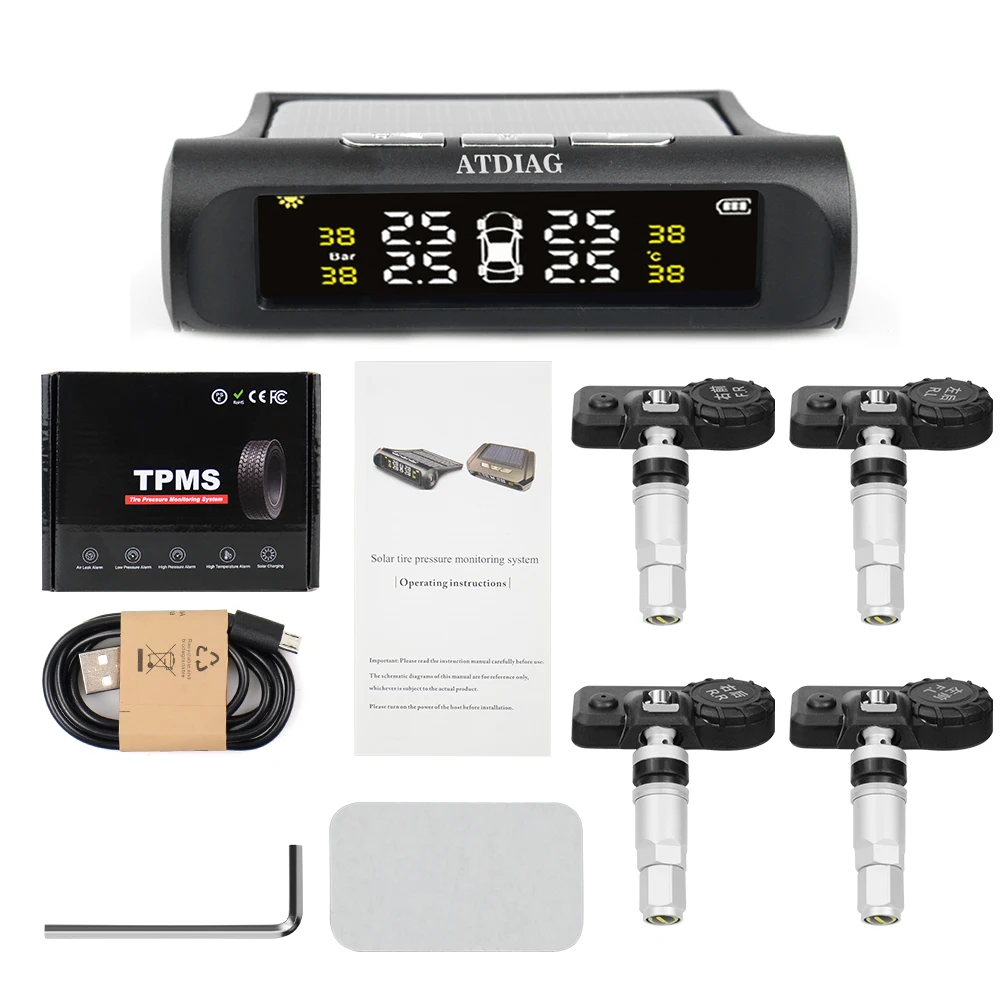

Built-in Sensor

Working Temperature:–40 °C -125 °C

Working Frequency:433.92MHZ

working humidity:Max95%

Tire monitoring range value:0bar-3.5bar Deviation±0.013

Battery life:5 years

Transmit power:R&D environment test below-17db

Features:

Solar power charging;

High and low pressure, leak alarm;

LCD display screen, Simple user interface

High accuracy, Using Freescale imported chips;

Real-time monitoring tire pressure and temperature;

Smart start: parking automatically sleep, the car starts automatically wake up.

Two units(PSI / Bar) changeable, you can set the one you like.

Sensors’ battery Changeable

Description:

Solve the sensor does not work:Match sensor(Vent)

Long press /’/’menu key/’/’ 3 seconds to /’/’U/S/’/’,then short press /’/’menu key/’/’ several times to enter/’/’LID/’/’ interface,it shows ID of four tires and car icon.

Short press /’/’left/right select key/’/’ to learn ID opertion.Select tire you plan to learn ID of sensor by press/’/’menu key/’/’,default setting is /’/’FL/’/’>/’/’FR/’/’>/’/’RR/’/’>/’/’RL.

When tire is selected,display new /’/’ID/’/’ in receiver after active sensor//’s ID(internal sensor active by charging/vent tier).

Do the same operation to match other three sensor.When all sensor are matched,short press /’/’menu key/’/’ to save and go to /’/’Ex/’/’.
